Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025

Name: Fully Automated Gabion Mesh Production Line Latest Tech amp Prices 2025
Brand: SUNRICH
Price: 35000 USD

China Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025 wholesale

Brand Name : SUNRICH

Model Number : SRC-100-2

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : usd35000-usd48000

Supply Ability : 10 SETS/MONTH

Delivery Time : 35 WORKING DAYS

Packaging Details : NUDE PACKING

Weaving Width : 4500mm

Dimension : 7200x1400x2400mm

Model : SRC-100-2

System : automatic PLC system with servo motor

Color : Grey

Product Type : Gabion Machine

Production Speed : 30-50m/min

Structure : heavy duty

Zinc Coating : 220-280g/m2

Mesh Hole : 100mm × 120 mm

Working Width : 4500mm

Application : Gabion box&Gabion Mattress&Gabion Cage

Contact Now

1. Product Overview

Gabion Machine is an automated weaving equipment designed to produce gabion boxes, mattresses, and cages from galvanized or PVC-coated steel wires. These structures are widely used in civil engineering, erosion control, and landscaping projects.

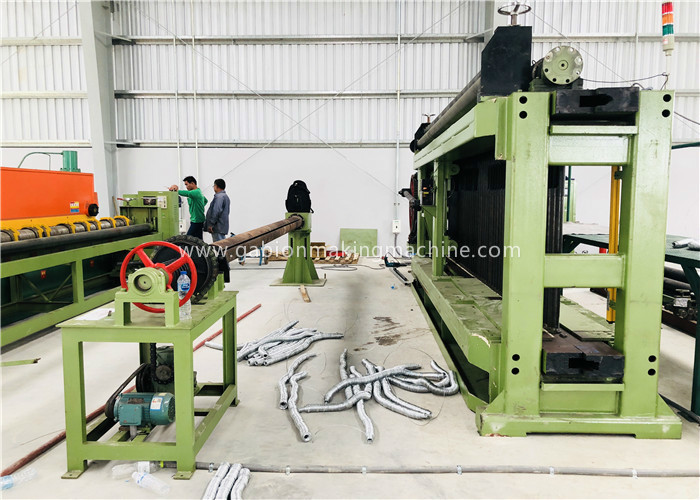

2. Set of gabion mesh production line including

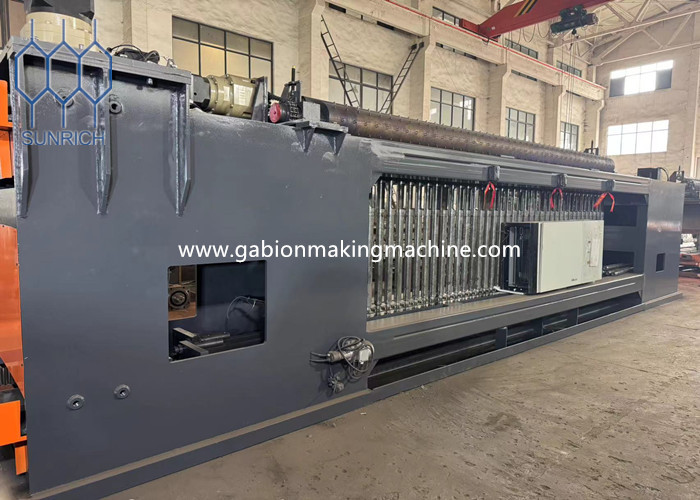

Gabion mesh weaving machine

Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025

Wire tension roller

Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025

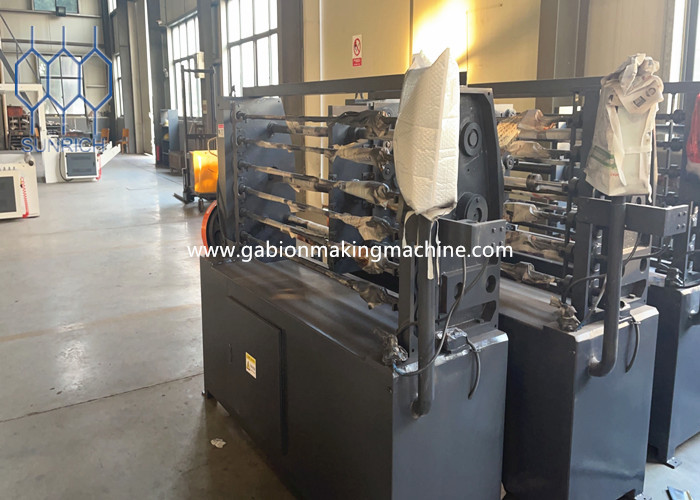

Spring coiling machine

Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025

Netting winding machine

Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025

3. Key Applications (Uses)

Slope & Erosion Protection: Stabilizes soil in riverbanks, highways, and coastal areas.
Retaining Walls: Reinforces terraces and road embankments.
Flood Control: Used in dam construction and drainage systems.
Architectural Landscaping: Decorative gabions for gardens and urban designs.

4. Product Models & Specifications

Model	Mesh Size	Wire Diameter	Mesh Size (m)	Speed(m/h)
SRC-60-2	60x80mm	2.0–3.0 mm	2m-5m	180m/h
SRC-80-2	80x100mm	2.0–3.5 mm	2m-5m	220m/h
SRC-100-2	100x120mm	2.0–4.0 mm	2m-5m	250m/h

5. Product Advantages

✅ High Efficiency: Automated weaving reduces labor costs by 70%.
✅ Durability: Produces gabions with anti-corrosion coatings (galvanized or PVC).
✅ Flexible Design: Adjustable mesh size and box dimensions.
✅ Low Maintenance: Servo motors and PLC system ensure long-term stability.
✅ Energy Saving: Optimized power consumption (10–15 kW/h).

6. Export Markets

Our machines are exported to 50+ countries, including:

Asia: India, Vietnam, Philippines, Nepal, Thailand, Indonesia
Europe: Poland, Spain, Italy, UK (for EU-standard CE-certified models)
Africa: South Africa, Algeria, Tunisia
Americas: Brazil, Mexico

7. Additional Services

OEM/ODM Support: Custom branding and technical adaptations.
Training & Installation: On-site guidance for operators.
After-Sales: 12-month warranty, spare parts supply.

8. Gabion Mesh Production Line Machinery List

Equipment	Function	Key Specifications	Application
Double-Twist Weaving Machine	Automatically weaves hexagonal mesh (enhanced strength).	- Mesh size: 60×80mm to 100×120mm (adjustable) - Output: 00–1200㎡/shift (8hrs)	Standard gabion production
Automatic Straightening & Cutting Machine	Straightening and Cut gabion mesh sheet accordingly	- Cutting precision: ±2mm - Speed: 30 times/min - Power: 380V/50Hz	Gabion Box /retaining walls
Edge winding machine	Edge mesh sheet both sides	- Mesh size: 60×80mm to 100×120mm (adjustable) - Speed: 3-4pieces/min - Width: 1-4m	Gabion Box /retaining walls
Gabion Packing machine	Press gabion box	- Packing size: 2x1x1mm or 3x1x1m - Press: 60t - Power: 380V/50Hz	Gabion Box /retaining walls
Iron Wire Straightening and cutting machine	Side wire straightening and cutting	- Cutting width: 5m - Max Wire diameter: 5mm	Gabion Box /retaining walls

Fully Automated Gabion Mesh Production Line – Latest Tech & Prices 2025 Images
